A sudden pipe blockage stops concrete pouring in an instant. This interruption does more than just pause the work, it wastes expensive ready-mix material and forces crews into a frantic cleaning cycle. For site foremen and fleet managers running pre-owned concrete pumps, these clogs often seem like a daily struggle. While many operators blame the concrete mix immediately, the root cause usually hides within the delivery pipe wear parts or specific jobsite habits. In practice, a concrete pump blockage rarely has a single cause — it is usually the pipeline, the mix, or the way the crew runs the machine. Understanding these triggers helps you maintain a steady flow and avoid costly project delays.

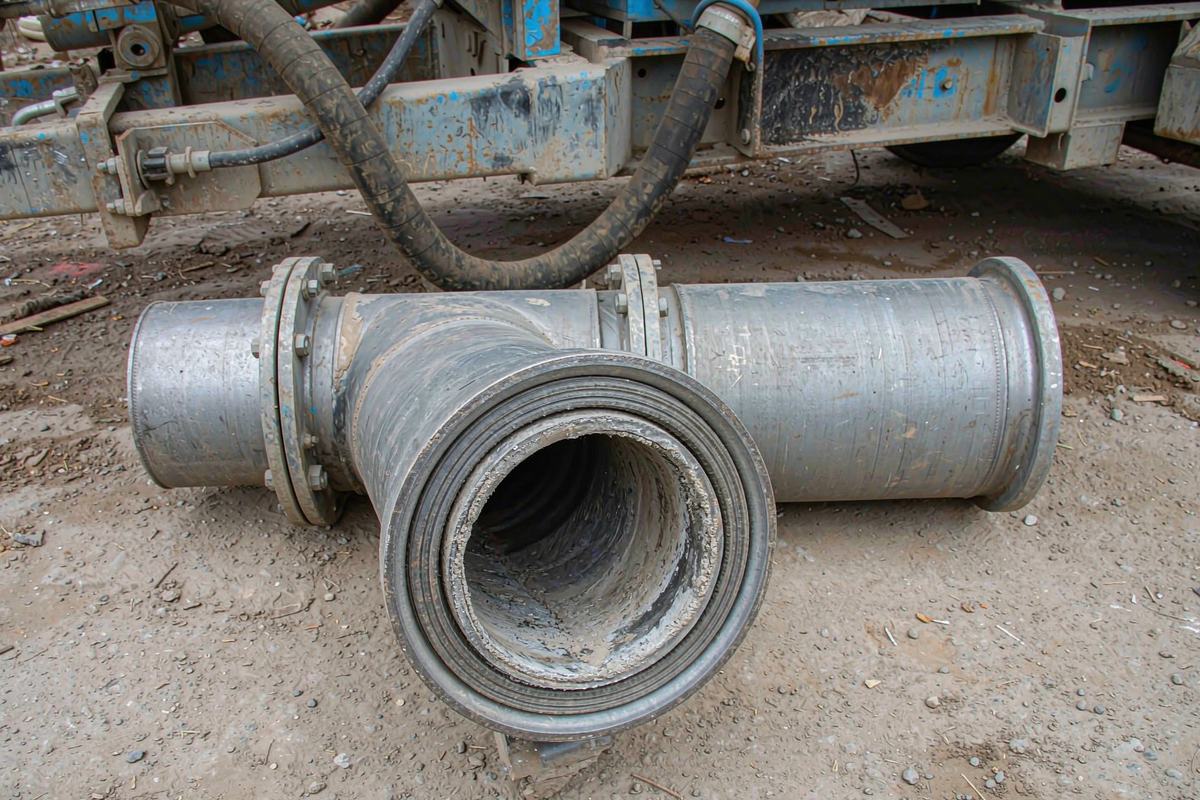

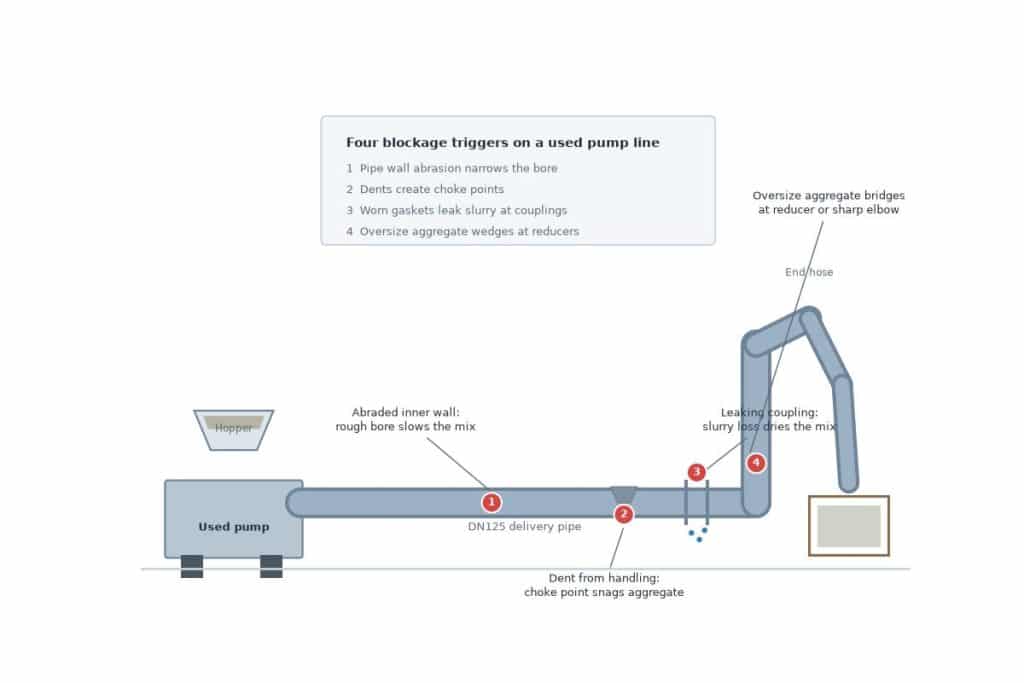

Deterioration of Delivery Pipe Wear Parts on Aged Used Concrete Pumps
The internal condition of your pipeline determines how easily concrete slides toward the discharge point. Wear is the most common source of a repeated concrete pump blockage on second-hand machines. On aged used concrete pumps, the delivery pipe wear parts undergo significant stress that operators often overlook until a full jam occurs. Imachine provides a range of concrete pump wear parts to ensure your pipeline remains in peak condition.
Inner Wall Abrasion and Roughness
Long-term pumping acts like sandpaper on the inner lining of the delivery pipes. Over thousands of cubic meters, the smooth factory finish disappears, leaving a pitted and rough surface. This increased friction slows down the concrete skin layer. Once the flow slows, cement paste begins to stick to these rough patches. This buildup gradually narrows the pipe diameter, making each subsequent stroke harder for the pump to push. Eventually, the residue becomes thick enough to snag aggregate and trigger a massive blockage.
Deformation and Dents from Handling
Pre-owned equipment often travels between multiple jobsites. During transport or rough handling with cranes, delivery pipes can suffer external dents. While a small dent might look harmless on the outside, it creates a “choke point” inside the tube. When large aggregate hits this narrowed section, it loses velocity and stacks up. This stacking effect creates a bridge that stops all material flow behind it. Always inspect used pipes for perfectly circular cross-sections before assembly.
Seal and Joint Leakage at Couplings
Pipe couplings and gaskets are critical wear parts that maintain the internal pressure of the system. If a seal is worn or a coupling is loose, water and cement slurry will spray out under pressure. This loss of liquid changes the concrete slump locally at the joint. Without enough water to lubricate the aggregate, the mix becomes a dry plug of sand and stone that the pump cannot move. Keeping an inventory of fresh gaskets from Imachine concrete pump service ensures you can fix these leaks instantly.
Concrete Mix Properties That Raise Clog Risks
Even a perfect pump will fail if the material inside is not “pumpable.” The interaction between the concrete mix and the aged pipes of a used trailer pump requires careful balance. Site managers must monitor the ready-mix delivery closely to prevent these common mix-related issues.
Incorrect Slump Values
Concrete that is too dry has high internal friction, requiring extreme pressure that can burst old pipes or stall the engine. Conversely, concrete that is too wet leads to aggregate separation. In a wet mix, the stones sink to the bottom of the pipe while the water and sand flow over the top. This separation creates a “dry pack” of stones at the next elbow or reducer, which acts like a dam against the rest of the flow.
Poor Aggregate Grading
The size of the stones must match the pipe diameter, which is why aggregate grading is a core part of any mix design. A common rule is that the pipe diameter should be at least three times larger than the largest stone. If your supplier includes oversized aggregate or “flaky” stones, they will likely wedge themselves in the reducers. Site foremen should check the aggregate size at the hopper before allowing the mix into the pipeline.
Late Setting and Hydration Issues
Traffic delays or long wait times on-site allow concrete to begin its initial set inside the truck or the pump hopper. Once the chemical hydration process speeds up, the mix loses its lubricity. For used pumps that might already have slightly lower hydraulic efficiency, pushing “old” concrete through a long pipeline is a recipe for an immediate blockage.
Improper Site Operation Habits
Human error accounts for a large percentage of concrete pump blockage incidents. Even with high-quality used trailer pumps, poor operating habits will lead to downtime. Training your crew on the following points can dramatically reduce clogging incidents.
Skipping Startup Procedures
You should never pump dry concrete into a dry pipe. The pipe walls will instantly absorb moisture from the first batch of concrete, causing it to seize. Reliable operators always start with a “lubricating slug” of cement mortar or a specialized chemical primer. This coating ensures the actual concrete mix has a slippery path from the hopper to the discharge hose.
Abrupt Pressure Adjustments
When an operator notices the pump struggling, the instinct is often to crank the pressure to the maximum. However, sudden pressure spikes can actually compress the aggregate into a solid plug. Smooth, gradual increases in pumping speed are much safer for the pipeline and the machine’s hydraulic system.
Unreasonable Pipeline Layouts
Every elbow and vertical lift adds resistance to the flow. If your site layout includes too many sharp 90-degree bends or steep climbs without proper support, the pump has to work much harder. Whenever possible, use long-radius elbows and keep the horizontal run as straight as possible. If you are using a used concrete pump truck, verify its maximum horizontal and vertical reach before finalizing a complex pipe layout.

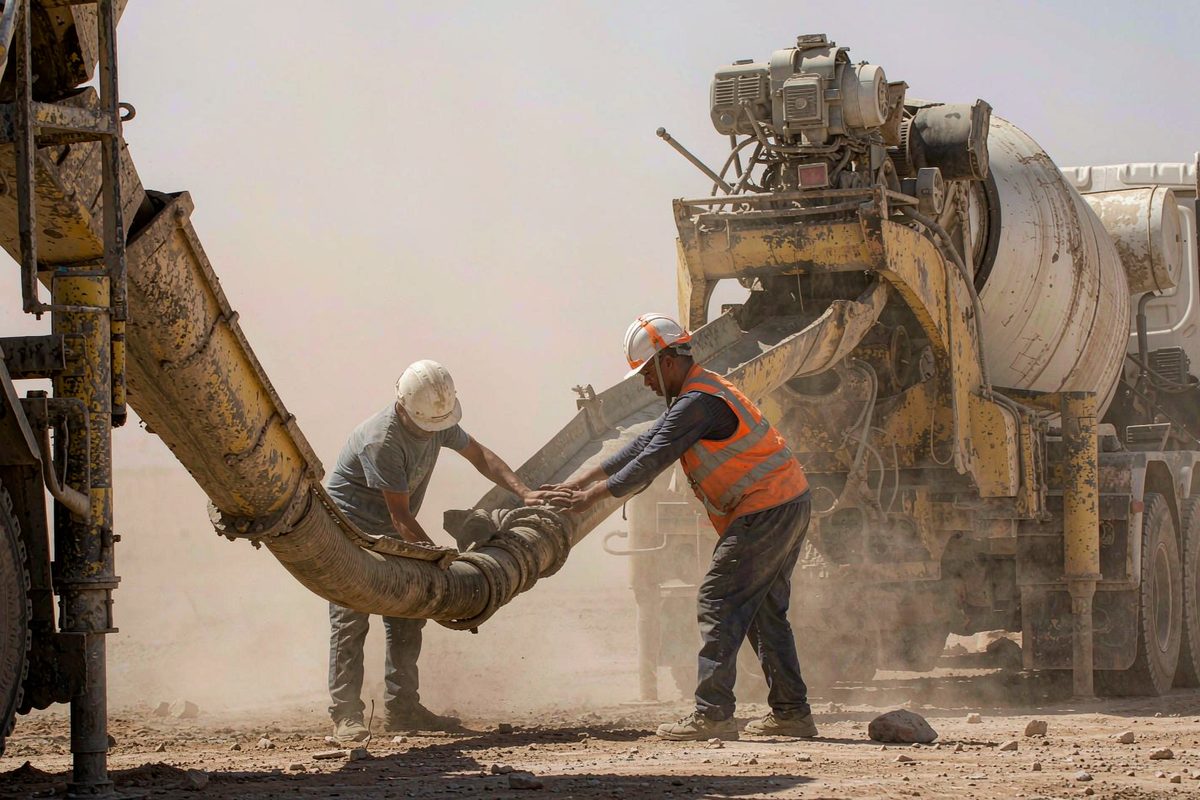

How High-Temperature and Dusty Jobsites Worsen Repeated Blockages
The environment of some markets is often the silent enemy of concrete pumping, high ambient temperatures speed up the hydration of cement. When the thermometer hits 35°C or higher, the “open time” of your concrete mix shrinks rapidly. Concrete that was pumpable at the plant can become stiff and “sticky” by the time it reaches the end of a long delivery line.
Furthermore, dust and sand can contaminate the mix water or settle in the hopper if it is left uncovered. This contamination changes the chemical balance and workability of the concrete. For used pumps with slightly worn wear parts, these environmental factors amplify the friction inside the pipe. Operators in hot climates should consider shading the pipeline or using ice in the mix water to keep the material cool and flowing.
Frequently Asked Questions
Yes. Abraded inner linings of these wear parts create rough surfaces where concrete residue builds up. Even a well-proportioned mix can jam repeatedly if the pipe walls are degraded. Replacing worn segments often solves recurring clogging issues immediately.
Inspect pipe wear parts for external dents, check the inner lining for excessive roughness, and ensure all couplings have fresh gaskets. Any water leakage at a joint is a sign that a blockage is likely to form at that location.
It does. High heat accelerates the setting time of concrete, reducing its workability. When combined with aged wear parts that already increase internal friction, the risk of a stall or jam increases significantly.
If the blockage always occurs at the same pipe bend or reducer, it is likely a pipe or wear part issue. If the pump stalls randomly or the mix shows aggregate separation in the hopper, the problem usually lies with the concrete properties.
Conclusion
Frequent pipe blockages are rarely the result of a single error. Instead, they usually stem from a combination of degraded delivery pipe wear parts, poor mix design, and inconsistent operating practices. For owners of used concrete pumps, failing wear parts are often the hidden culprit that turns a minor mix variation into a major site disaster — a recurring concrete pump blockage usually points back to the pipeline itself. By maintaining your pipeline and monitoring your site conditions, you can protect your equipment and keep your project on schedule. Contact Imachine team to inspect your used concrete pump’s pipeline condition and source reliable replacement pipe wear parts.
