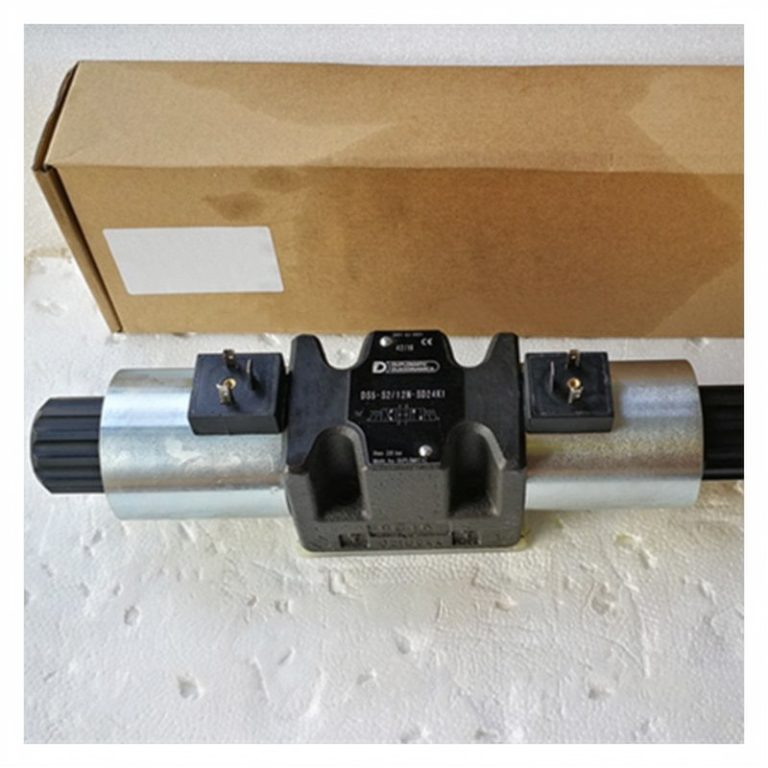

The DS5-S2/12V-D24K1 W7 Solenoid Valve is a solenoid valve for concrete pump trucks, boom pumps and trailer pumps. imachine supplies it as a replacement for the original unit when the old part is worn, leaking or no longer holding pressure.
Construction: Ductile iron (EN-GJS-400) body, 42CrMo4 hardened spool, NBR/FKM seals. Working range: Rated pressure 350 bar (peak 420 bar); flow 40–300 L/min; 12/24 VDC coil, IP65, DIN 43650 / DT04-2P; response ≤ 15 ms. Expected service life is 2,000,000 cycles in normal pumping duty. Port or interface: G1/4″, G3/8″, G1/2″, G3/4″, G1″; M14×1.5, M16×1.5, M18×1.5, M22×1.5; 7/16″-20 UNF, 9/16″-18 UNF, 3/4″-16 UNF; SAE J1926 / ISO 6149.
Applications of DS5-S2/12V-D24K1 W7 Solenoid Valve
- DS5-S2/12V-D24K1 W7 Solenoid Valve for concrete pump trucks, boom pumps and trailer pumps
- Replacement of a worn or failed solenoid valve during scheduled maintenance
- Repair jobs and maintenance stock for concrete pump truck fleets
Specifications of DS5-S2/12V-D24K1 W7 Solenoid Valve
| Specification | Details |
|---|---|
| Brand | OEM / Aftermarket |
| Model / Size | DS5-S2/12V-D24K1 |
| Part type | Solenoid Valve |
| Material | Ductile iron (EN-GJS-400) body, 42CrMo4 hardened spool, NBR/FKM seals |
| Key parameters | Rated pressure 350 bar (peak 420 bar); flow 40–300 L/min; 12/24 VDC coil, IP65, DIN 43650 / DT04-2P; response ≤ 15 ms |
| Service life | 2,000,000 cycles |
| Thread / interface | G1/4″, G3/8″, G1/2″, G3/4″, G1″; M14×1.5, M16×1.5, M18×1.5, M22×1.5; 7/16″-20 UNF, 9/16″-18 UNF, 3/4″-16 UNF; SAE J1926 / ISO 6149 |
| Application | Concrete pump truck / boom pump / trailer pump |
Q&A – Buyer-Focused Commercial Queries
Q1: Which machines does this part fit?
A: It is used on concrete pump trucks, boom pumps and trailer pumps. Confirm the machine model and the original part number before ordering, because mounting patterns differ between pump generations.
Q2: What are the main specifications?
A: material: Ductile iron (EN-GJS-400) body, 42CrMo4 hardened spool, NBR/FKM seals; working range: Rated pressure 350 bar (peak 420 bar); flow 40–300 L/min; 12/24 VDC coil, IP65, DIN 43650 / DT04-2P; response ≤ 15 ms.
Q3: How long does it last?
A: Under normal concrete-pumping duty the expected service life is 2,000,000 cycles. Abrasive mixes, high pumping pressure and missed lubrication shorten it.
Q4: How do I confirm the right part?
A: Send the machine model, the original part number or a photo of the old part. We match it against the drawing and confirm before shipping.
