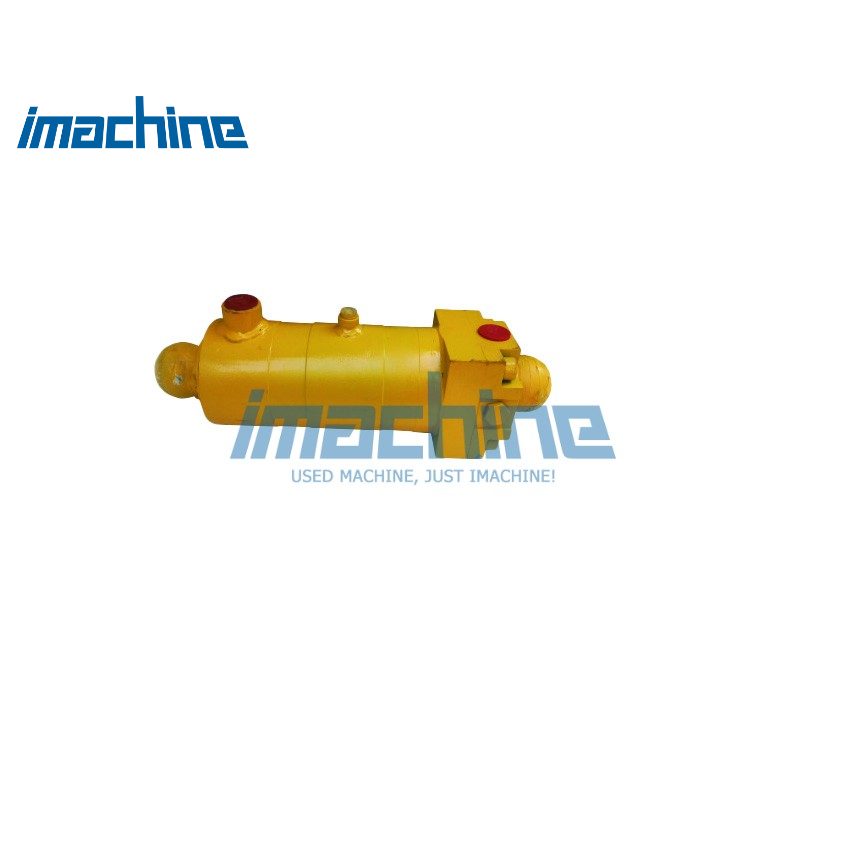

A concrete pump tilt cylinder is a critical hydraulic component designed to adjust the angle of the pump’s S-valve or rock valve, ensuring smooth, accurate concrete flow. This component plays a key role in directing the concrete from the hopper into the delivery pipeline, enabling efficient pumping even in challenging construction conditions. Built for durability and precision, tilt cylinders must withstand high pressures, abrasive concrete mixtures, and continuous heavy-duty use.
Types of Concrete Pump Tilt Cylinders
- Putzmeister Concrete Pump Tilt Cylinder
- Known for high precision and wear resistance.
- Designed for compatibility with various Putzmeister models, both mobile and stationary.
- Schwing Concrete Pump Tilt Cylinder
- Strong sealing system to prevent hydraulic fluid leakage.
- Offers consistent performance under extreme pumping pressures.
- SANY Concrete Pump Tilt Cylinder
- Heavy-duty build with advanced welding technology.
- Compatible with SANY’s range of truck-mounted and stationary pumps.
- Zoomlion & XCMG Concrete Pump Tilt Cylinder
- Cost-effective solutions for standard pumping needs.
- Reliable performance for medium to large-scale construction projects.
Applications of Concrete Pump Tilt Cylinder
Concrete pump tilt cylinders are widely used in:
- High-Rise Building Construction – Adjusts the pumping angle for concrete delivery to upper floors.
- Bridge and Viaduct Projects – Maintains accurate concrete placement over long spans.
- Tunnel & Mining Operations – Works with shotcrete pumps to coat tunnel walls.
- Infrastructure Development – Suitable for road, dam, and large-scale industrial projects.
Specifications of Concrete Pump Tilt Cylinder
| Specification | Details |
|---|---|
| Material | Casted Steel |
| Bore Size | 80mm/90mm/81mm/93mm |
| Stroke Length | Designed to match specific pump configurations. |
| Working Pressure | Up to 350 bar, depending on brand and model. |
| Sealing System | High-performance seals to prevent leakage under pressure. |
| Compatibility | Available for major brands like Putzmeister, Schwing, SANY, Zoomlion, and XCMG. |
Q&A – Common Buyer Questions
Q1: What does a concrete pump tilt cylinder do?
A: It controls the angular movement of the pump’s S-valve or rock valve, enabling precise concrete direction during pumping operations.
Q2: How do I know when a tilt cylinder needs replacement?
A: Signs include hydraulic leaks, reduced pumping efficiency, irregular concrete flow, or visible wear on the cylinder rod.
Q3: Can tilt cylinders be repaired?
A: Yes, seal replacement and rod resurfacing are common repairs, but severe internal wear often requires a full replacement.
Q4: Are tilt cylinders interchangeable between brands?
A: Not always—compatibility depends on the pump model and specifications. Always verify measurements before ordering.
