In the world of foundation engineering, the choice of a piling rig often comes down to one critical component: the crowd system. Whether you are working on a high-rise in Lima or a bridge in Casablanca, the way your rig applies pressure to the drill bit determines your meters-per-hour and your overall fuel efficiency.
As experts in high-quality used SANY and XCMG equipment, we often see buyers overlook this distinction. Today, we break down the mechanics, pros, cons, and real-world applications of Cylinder Crowd and Winch (Rope) Crowd systems.
1. Cylinder Crowd: The Rock Specialist for Piling Rigs
The cylinder crowd system utilizes a hydraulic piston to push the power head down directly.
- Mechanism: A hydraulic cylinder is mounted on the mast. As the piston extends, it applies force directly to the kelly bar.
- Pros: It provides immense, stable, and concentrated downward pressure. It is the “heavy hitter” of the industry.
- Cons: The stroke is limited by the length of the cylinder (usually 4–6 meters). This requires the operator to “reset” or “step” the crowd frequently during the drilling process.
Best For: High-torque applications in hard rock, weathered granite, and dense limestone where consistent, high pressure is required to “bite” into the strata.
2. Winch Crowd: Efficiency for Deep-Hole Piling Rig Projects
The winch crowd system (also known as the rope crowd) uses a winch and a set of wire ropes to move the power head up and down.
- Mechanism: A winch drives a wire rope through a pulley system at the top and bottom of the mast to pull the power head down.
- Pros: The biggest advantage is the long stroke. The power head can move the entire length of the mast in one continuous motion. It is significantly faster in softer soils.
- Cons: Wire ropes are wear-and-tear items. They require regular inspection and replacement compared to the rigid structure of a cylinder.
Best For: Soft to medium soils, clay, and extremely deep piles. If your project requires high-speed cycle times and deep drilling, the winch system is your best ally.
3.Side-by-Side Comparison: Cylinder vs. Winch
| Feature | Cylinder Crowd (Oil Cylinder) | Winch Crowd (Wire Rope) |
| Crowd Force | Extremely High & Stable | Moderate |
| Stroke Length | Short (Limited by cylinder) | Long (Full mast length) |
| Drilling Speed | Slower (due to resetting) | Faster (continuous motion) |
| Ideal Soil | Hard Rock / Cobbles | Soft Soil / Clay / Silt |
| Maintenance | Low (Check seals & rods) | Higher (Check wire ropes & pulleys) |
| Typical Models | SANY SR285R (Rock Version) | SANY SR285 (General Version) |
4. Regional Application Guide: Making the Right Investment
Scenario A: The Andean Mountains (Peru/Chile)
In regions with volcanic rock or dense mineral strata, a Cylinder Crowd rig is non-negotiable. The high-pressure output ensures that your drill bits actually penetrate the rock instead of just “polishing” the surface.
Scenario B: Coastal Infrastructure (North Africa/Southeast Asia)
If you are working in the sandy or silty soils typical of coastal expansion projects (like the 2030 World Cup stadium booms), a Winch Crowd rig will provide a much better ROI. The ability to drill deep, continuous holes without stopping to reset the crowd will save you hours of operation time daily.
Conclusion: Which should you choose?
There is no “better” system—only the “right” system for your geology.

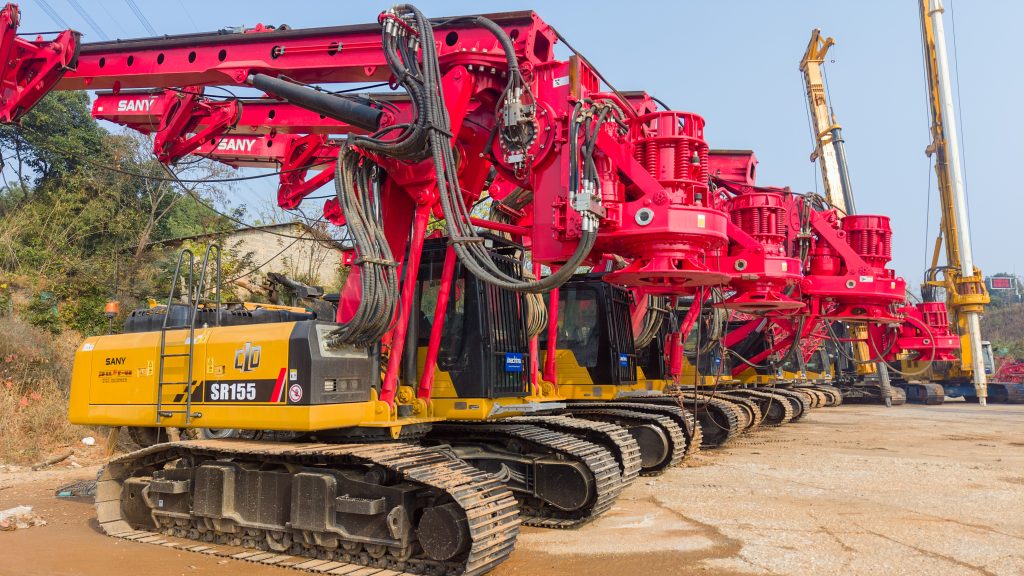

At imachine, we specialize in sourcing 5-year-old, low-hour SANY and XCMG rigs equipped with both systems. If you are unsure which mechanism fits your next project in Peru or Morocco, send us your soil report, and our engineers will match you with the perfect machine.
Looking for a certified used SANY Piling Rig? [Contact our experts via WhatsApp today] to get a technical inspection report and a shipping quote to your port.
FAQ
The choice depends entirely on your soil conditions and drilling depth.
Cylinder Crowd is the “Rock Specialist”—it provides higher, more stable downward pressure, making it indispensable for hard rock or dense strata (like the terrains in the Andes Mountains).
Winch Crowd is the “Efficiency Expert”—it offers a full-mast stroke, which is significantly faster for deep-hole drilling in soft to medium soils or clay.
Beyond the engine and hydraulic pumps, you must focus on the Kelly Bar and the Crowd System components.
Kelly Bar: Check for any deformation, cracks, or excessive wear on the drive ribs. A bent Kelly Bar is a major repair cost.
Hydraulic Cylinder/Winch: For cylinder rigs, check the piston rod for scoring; for winch rigs, inspect the drum and the first layer of the crowd rope for fraying.
Slew Bearing: Ensure there is no abnormal noise or excessive play during rotation.
Due to their massive height and weight, piling rigs are usually shipped in a partially dismantled state.
Mast Removal: The mast is often detached and laid flat to reduce the shipping height.
RORO (Roll-on/Roll-off): This is the safest method for the chassis and engine, protecting the sensitive hydraulic lines from the elements.
Flat Rack / Breakbulk: For specific ports without RORO service, we use heavy-duty Flat Racks, ensuring all components (Kelly bars, buckets, mast) are securely lashed and weather-protected.
